GPS Iridium Repeater Kit DX1

Internal Iridium Signal Booster. Review our new GPS repeater

GPS Iridium Repeater. Coaxial or Optical



GPS Iridium Repeater: THE DXCOMM DX1

British designed using the most superior and modern components available. State of the art device that enables seamless satellite communication indoors. Manufactured following the highest standards of engineering and innovation its a testament to the excellence and expertise of British technology.

DX1 Features:

  • The DX1 can operate using the sole indoor unit (IDU) at distances up to 60 meters from the external antennas and the internal antennas.
  • Option for an Optical Iridium Repeater Kit, featuring an Outdoor  Unit (ODU) connected to the Indoor Unit (IDU) via fibre optical cables,  enabling coverage over vast distances.
  • Uplink and Downlink Gain: Adjustable upto 75db, are available on the LCD display, ensuring a swift setup process.
  • Operates on GPS L1, GLONASS, GNSS-2, GALILEO + Iridium Frequencies.

Technical features:-

  • Thermal monitoring and safety shutdown
  • Integrated fuse and reverse polarity protection
  • Surge protection on inputs and outputs
  • Outputs protected against impedance mismatch/antenna disconnection
  • Extremely low-noise input stage
  • 2W continuous output power

DX1 GPS SATELLITE REPEATER Kit Includes:

  • 1 x Iridium Repeater.
  • 4 x 10 metre coaxial cables. (Optional Cables up to 30m)
  • 4 x Iridium Antennas.
  • 1 X Power Supply. (Optional Battery Backup)
  • Optional:  Brackets, Ceiling Panels, Extra Long Coax Cables. Made to measure Coax Cables, Leaky Coax Cables

Optional Extras:

 30m Long Coax Cables, Made to measure Coax Cables, Leaky Coax Cables, RF absorbing kits,  Brackets, Ceiling Panels, The indoor unit IDU is powered by a DC  supply, which can also be equipped with an optional battery backup to  ensure continuous operation in case of AC power supply failure to the  repeater.

Download the Data sheet below.

GPS Repeater Installation Examples

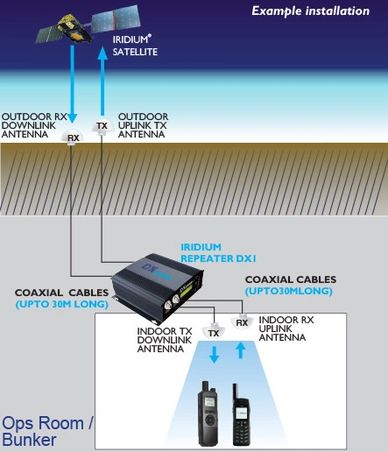

Bunker / Operation Room Installation

GPS Iridium Repeater for bunker or operation room installation illustration

Indoor use of Satellite Phone without requiring sky view access. Typical installation example of an underground bunker.

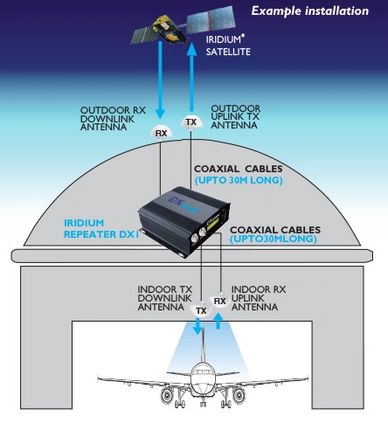

Hangar Installation

GPS Iridium Repeater Hangar installation Illustration

Connectivity to the satellites within the hangar with the GPS Repeater.

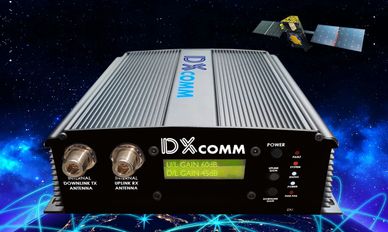

The DX1

GPS Iridium Satellite Repeater

British designed using the most superior and modern components available. State-of-the-art device that enables seamless satellite communication indoors. Manufactured following the highest standards of engineering and innovation its a testament to the excellence and expertise of British technology.

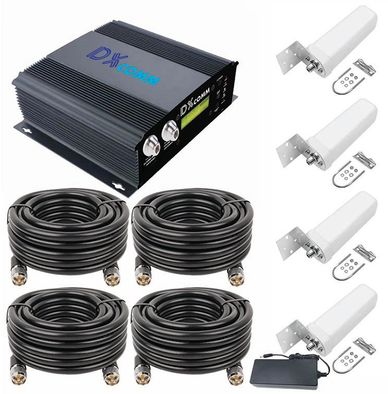

The Standard DX1 GPS Satellite Repeater Kit



GPS Iridium Repeater Kit with 4 coaxial cables, 4 GPS iridium antennas and power supply. Made to measure coax cables upto 30m each can be supplied.


See above for Optional Extras

Optional Extras

The DX1 Satellite Repeater

The DX1 Satellite Repeater

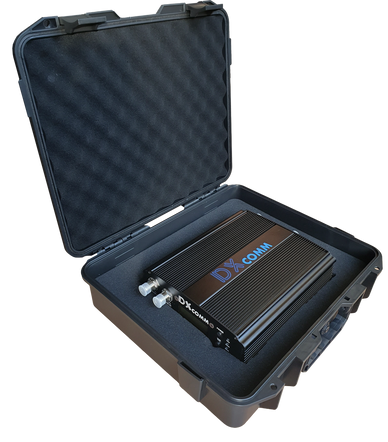

GPS Iridium Repeater Kit in hard case.




Iridium Repeater Uses and Benefits

A GPS iridium repeater is a device that relays iridium satellite signals indoors or in areas where the signals are weak or blocked. Iridium is a network of 66 satellites that provide global voice and data communication services. Iridium Repeater Kits such as the DX1  can be seamlessly integrated with various Iridium devices, including satellite phones and SBD (Short Burst Data) devices.


KIT COMPONENTS

 The Iridium repeater kit consists of two outdoor antennas, an indoor unit (IDU), and two indoor antennas. The outdoor antennas effectively receive and transmit Iridium signals to and from the satellites, while the indoor antennas efficiently distribute these signals to enabled devices inside buildings or vehicles. All components are connected using low loss coaxial cables.


BENEFITS

It offers numerous advantages, including:

  • Facilitating indoor usage of Iridium devices without requiring sky-view access
  • Enhancing the security and privacy of satellite communications
  • Supporting emergency and disaster response operations
  • Expanding the coverage of the Iridium network in remote regions
  • Applicable in various settings such as hangars, bunkers, military operation rooms, shipping vessels, oil rigs, mines, civilian bunkers, emergency command rooms, security services etc.
  • Use with iot devices


Bespoke designed repeater also possible

We can also design and supply tailored bespoke repeaters.

Download Resources for the DX1 GPS Iridium Repeater

Installation Guide and Setup Guide will be uploaded soon.

For information or a quote please contact us.

DXComm GPS Iridium Repeater DX1 Data Sheet (pdf)

Download
